This Electric Bicycle kit includes everything needed(except battery) to convert your standard bike into a top-of-the-line performance electric bike, which delivers unequaled performance and reliability. You’ll be out cruising along at 28mph (45km/h) without a sweat!
Key feature:
* Built to the highest international standards, UKCA,CE, EN15194
* 48V 1000W and 250W super power brushless gearless hub motor
* Restricted to 250W and 16mph (25km/h) by default as a road-legal kit
* Nylon tire & alloy rim & stainless steel spoke
* Rare-earth metal magnet are used in the motor to efficiently produce large power
* Aluminum alloy powerful controller guarantee big current supply
* Twist throttle has battery level display and power-cut off button
* Brake Levers cut off the power supply to the motor safely
* 8 Point Crank speed sensor for pedal assist
* Aluminum alloy powerful controller
Upgraded Intelligent Motor Controller:
* Allow you to swap two power modes between the full 1000W power or 250W power by a single blue switch wire is embedded in controller.(Only for Twist Throttle)
* Still remain the full 1000W power with no speed control.(Only for Pedal Assist System,"PAS")
Note:
1. The system requires a 48 Volt electrokinetic cell battery with a nominal capacity not less than 11.6Ah.
2. Battery and charger are not included in package.
3. The UK regulations dictate that a kit must not exceed the rated power of 250W to be road-legal.
4. For your Safety, Please turn off the battery before connecting the Controller!
Specifications:
Wheel type: Front Wheel
Motor: Brushless Gearless
Tire: Nylon
Rim: Alloy
Power: 1000W / 48V or 250W / 48V
Torque: 45 N.M
Spokes: Steel, 12G×2.6mm
Max speed: 28 mph or 16 mph (45km/h or 25km/h)
Wheel Size: 26"
Max load capacity: 200kg (440lbs)
Net weight:10.5kg
Wheel Axle: 170 x Φ10mm

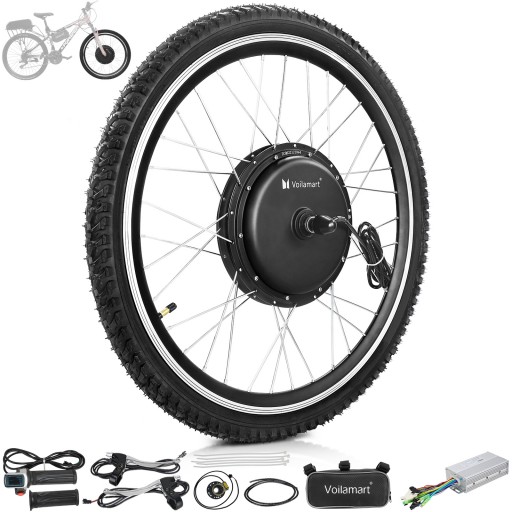

Package Include:
1x Brushless Gearless Motor Front Wheel
1x Intelligent Motor Controller
1x Pedal Assist Crank Sensor
1x Cable Ties & Plastic Coil
1x Pair of Handle Bars (included Twist Throttle)
1x Controller Bag
1x Pair of Brake Handles
1x Manual
